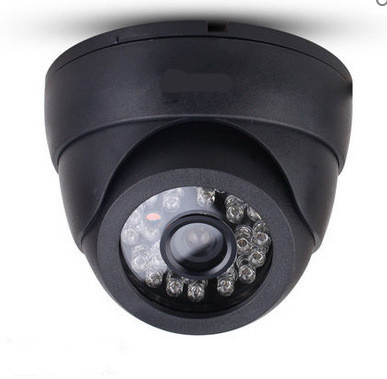

CCTV camera system AHD HD 1080P 24IR Night vision Analog cameras board lens CMOS Dome security camera
Specification
*Camera Type: HD coaxial 4 in 1 camera
*Resolution: 1080P
*Chipset: Hi3516C+OV2035
*IR Leds: 24pcs
*IR Distance: 20M
*IR Cut: support
*Night Vision: support
*Protection Type: IP66 waterproof
*Lens: 2.8-12MM fixed / varifocal lens optional
*Power consumption: DC 12V 2A
*weight: 0.3kg
| Image Sensor | OV9732 | Aptina0130 | OV2035 | Sony124 | ||||
| Main processor | Hi3518E | HI3518E | Hi3516C | Hi3516D | ||||
| Resolution | 720P | 960P | 1080P | 3.0MP | ||||
| Effective Pixels | 1280(H)*720(V) | 1305(H)*977(V) | 1985(H)*1105(V) | 2065(H)*1553(V) | ||||
| Compression | H.264 | |||||||
| S/N Ratio | ≥52dB | |||||||
| Lens | 2.8-12mm Optional | |||||||
| Infrared LED | 24pcs IR LED | |||||||
| Infrared Distance | 20M | |||||||
| IR Power On | CDS Auto Control | |||||||
| Ethernet | RJ-45 (10/100Base-T) | |||||||
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP, RTSP,RTCP,NTP,SMTP | |||||||
| ONVIF | Support ONVIF 2.4 | |||||||
| P2P | YES, Support | |||||||
| POE | Optional, Support IEEE 802.3af | |||||||
| WIFI | N/A | |||||||
| IE Brower | IE8-11, Google Chrome, Firefox, Safari, Mac Safari | |||||||
| Smart Phone | iPhone, iPad, Android, Android Pad | |||||||
| Day/Night | Color/ B&W (IR-CUT ) | |||||||
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) | |||||||
| WDR | Support | |||||||
| Motion Detection | Support | |||||||
| Recording Mode | NVR/NAS/CMS/Web | |||||||
| Language | Chinese Simplified, English, Polish, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish,Italian,Nederlands...28 languages | |||||||
| Housing Type | Plastic Indoor Dome | |||||||
| Anti-cut Bracket | YES | |||||||
| IR Cut Filter | YES | |||||||
| Operation Temperature | -20℃ ~ +60℃ RH95% Max | |||||||
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | |||||||
| Power Source | DC12V±10%, 1000mA | |||||||
| Weight | 300g | |||||||
