4ch CCTV Camera System 4ch Digital DVR CCTV Camera DVR Kit Hybrid 4ch AHD 1080N h.264 ahd dvr kit
Specification
DVR: 4ch 1080N DVR
| System | Main processor | Hi3520D V200 |
| Video | Codec | H.264 |
| Monitor quality | VGA,HDMI:HD | |
| Preview ability | 4*1080N | |
| Encode ability | 4*1080N@12fps/4*720P | |
| Decode ability | 1*1080N/1*720P | |
| Multi-mode input | analog:4*1080N;4*720P;4*960H; | |
| hybrid: 2*720P(analog)+2*720P(network); | ||
| network:4*1080P; 8*960P;8*720P | ||
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) | |
| Audio | Audio compression | G.711A |
| Intercom | support | |
| Record | Record mode | manual>alarm>motion detection>timing |
| search mode | Search by time, calendar, event, channel | |
| Video storage | HDD, network | |
| Backup mode | Network, USB hard disk, USB burner, SATA burner | |
| External Interface | Video input | 4ch BNC |
| Video output | 1ch VGA,1ch HDMI | |
| Audio I/O | 1/1 | |
| Alarm I/O | 0/0 | |
| Network interface | RJ45 10M/100M/1000M self-adaption | |
| Extension interface | 2* USB 2.0 ports | |
| HDD | 1*SATA ports (Max 6TB) | |
| General | ower supply | 12V/2A |
| Working environment | Temperature:0℃—+55℃,Humidity:10%—90%,Atm:86kpa—106kpa | |
| Weight | 1.2kg |

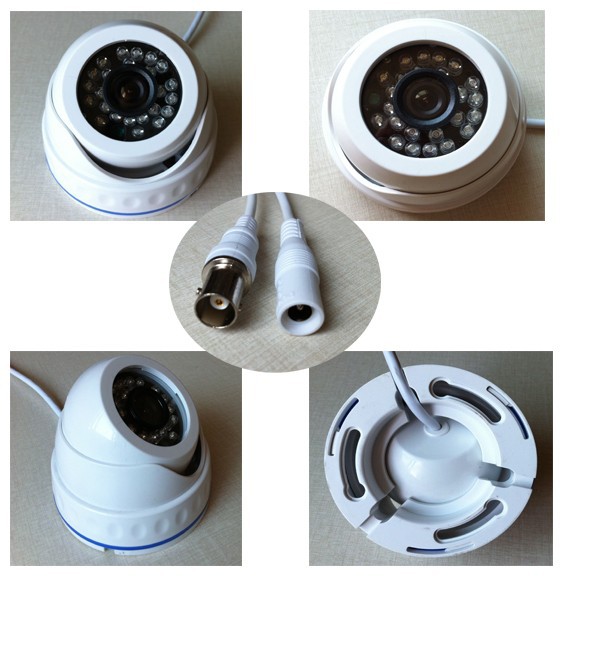

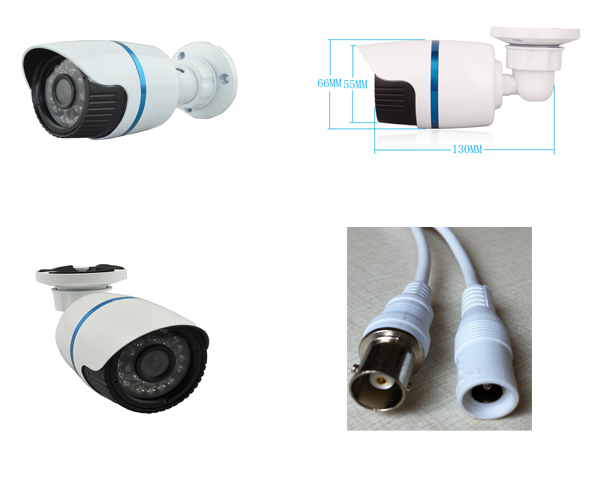

Camera: 960P AHD Camera
| Product name | 960P AHD Camera | |
| Image Sensor | Fuhan V20E + H65 | |
| TV System | PAL/NTSC | |
| Image Resolution | 1280*960 | |
| Horizontal Resolution | 1.3 MP | |
| SYNC. | Internal | |
| Video Out | 1.0Vp-p Composite Signal (75ohm) | |
| Minimum illuminator | 0 Lux (Infrared Light Open) | |
| Gama adjust | 0.45 | |
| Electric Shutter | PAL:1/50s-1/100000s | NTSC:1/60s-1/100000s |
| S/N Ratio | 58dB(min)(AGC closed) | |
| DNR | Yes | |
| Leds | 3.6mm -12mm optional | |
| IR LEDs | 24pcs IR LEDs | |
| IR Range | 20M | |
| Camera Type | IP66 waterproof | |
| AWB | AUTO | |
| AGC | AUTO | |
| BLC | ON/OFF | |
| Day/Night | Auto,Ext | |
| OSD | Optional | |
| Power Input | DC12V | |
| Operation Temperature | Temperature -10℃~+75℃,Humidity less than 85%RH | |
Package Included:
*HD 4ch 1080N AHD DVR x 1
*960P AHD Camera x 4
*18M Power & Video extension cable x4
*1 to power splitter x1
*12V5A power supply x 1
*USD Mouse x 1
*CD x 1, user manual x 1

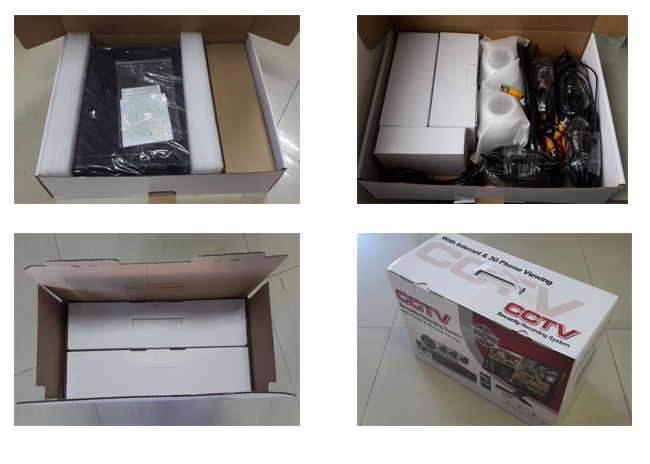

Product Show
CE Certificate for camera
Our Factory
Our Clients
1.OEM & ODM Acceptable;
2. Delivery Time: 3 days for samples , 5-25 days for production
3. Payment Term: T/T , Paypal and Westunion Accepted
|
|
